Yellow Tungsten Oxide Producing Equipment

Yellow tungsten oxide producing equipment according to the industrial production process will have a series of equipments, because industrial production of yellow tungsten oxide mainly through alkali decomposition, filter, ion exchange, dry and reduction and other processes, thus to need different devices, such as alkali decomposition furnace, plate and frame filter press, ion exchange column, spray drying tower and reduction furnace, etc.

Alkali decomposition furnace is mainly used for decomposing tungsten ore during the preparation of yellow tungsten oxide to dissolve tungsten into a solution. A plate and frame filter press is the most fundamental design, and many now refer it as a "membrane filter plate". This type of filter press consists of many plates and frames assembled alternately with the supports of a pair of rails. It is used for the impurity removal process of sodium tungstate for preparing high purity sodium tungstate and to manufacture the needed requirement of YTO.

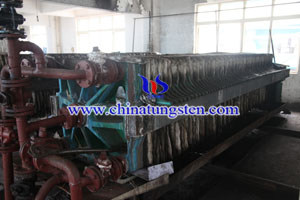

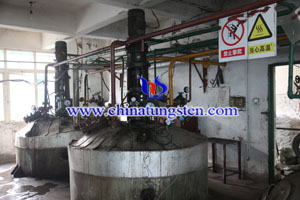

alkali decomposition furnace pictureplate and frame filter picture

Ion exchange column is also called as mixed bed, which is the cylindrical pressure vessel used for ion exchange reaction, and to remove a series of impurities of S, Mo, P, As, Ca, Cu and Sn in the process of yellow tungsten oxide production. Spray drying tower is filtered air and heating, into the top of the dryer air distributor, hot air spiraling evenly into the drying chamber, feed liquid of ammonium paratungstate (APT) will soon be dried under the high temperature air which is the raw material of yellow tungsten oxide.

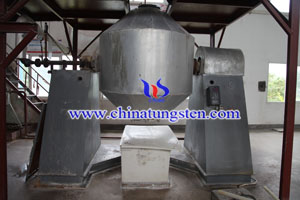

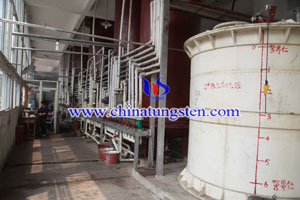

ion exchange column picturespray drying tower picture

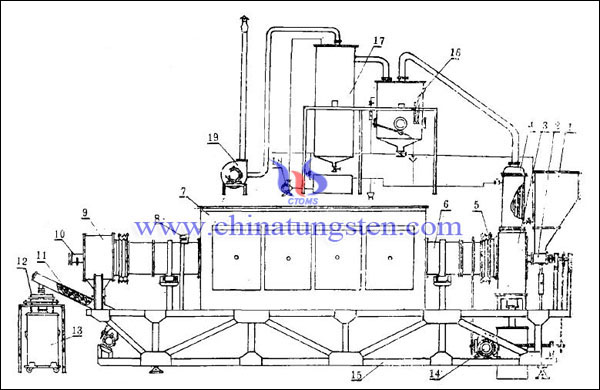

Yellow tungsten oxide rotary calciner is to calcine ammonium paratungstate (APT) or ammonium metatungstate (AMT) or other raw materials during the manufacture of YTO. In the picture bellow, 1~19 respectively represent like: 1 - Silos, 2 - feed double helix, 3 - burner degassing water seal and recovery box, 4 - speed condenser, 5 - burner end face sealing device, 6 - furnace tube, 7 - furnace body, 8 – vibrator, 9 - furnace tail discharging box, 10 - observation hole, 11 - discharging screw, 12 - continuous vibrating screen, 13 - bucket, 14 - furnace speed motor, 15 - furnace frame, 16 - adjustable liquid surface water seal, 17 - spray tower, 18 - circulating water pump, 19 - plastic exhaust fan.
